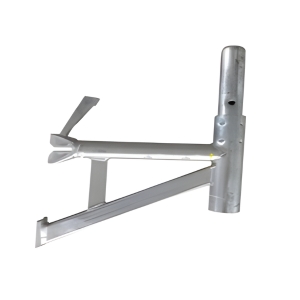

Board Bracket

The Ring lock Board Bracket is used to extend the working platform beyond the main scaffold frame. This is especially helpful when the main scaffold cannot be built close enough to the wall due to architectural features like eaves or balconies.

Technical Specifications

• Material Grade: 235JR (a standard structural grade carbon steel known for its reliability in load-bearing applications).
• Available Lengths: * 360mm / 390mm: Designed to hold 1 scaffold board.
  • 730mm: Designed to hold 2 scaffold boards.
  • 1090mm: Designed to hold 3 scaffold boards.
• Finish: Hot Dip Galvanized as per DIN EN 1461. This provides superior corrosion resistance, ensuring the steel doesn't rust even in harsh outdoor or coastal environments.
• Connection: Features a standard Ring lock wedge head to lock into the rosette of a vertical standard.
