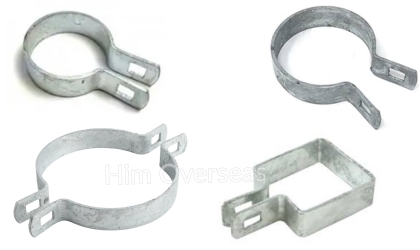

Brace Band (Square, Round, 2 Way)
Brace Band (Pressed Steel)
Type - Regular, Heavy, Beveled, Square, 2 Way
A brace band like regular, beveled, heavy, square and 2 way brace band, made of pressed steel is a staple fitting in chain link fence systems, especially for securing horizontal framework to terminal posts. Here's how it's typically used:
- Attaching Rail Ends to Posts: Regular brace bands wrap around end, corner, or gate posts and hold rail ends in place using a carriage bolt and nut. This connects top rails, bottom rails, or mid rails securely to the post.
- Supporting Tension Wire or Truss Rods They anchor tension wire or truss rods that run diagonally across the fence, helping maintain tension and structural integrity.
- The beveled edge allows for a tighter, more flush fit—especially useful when the rail meets the post at a slight angle.
- Beveled bands are preferred in fences installed on uneven or sloped ground, where standard bands may not sit properly.
- Used to attach rail ends, tension wire fittings, or gate hardware to square terminal posts (e.g., end, corner, or gate posts).
- They help maintain consistent tension and alignment across varying elevations.
- Pressed steel: construction with thicker gauge material offers superior strength and resistance to bending, cracking, or fatigue.
- Gate Hardware Mounting: Brace bands are used to mount gate hardware like hinges, latches, and gate closers to terminal posts.
- Finish: Often hot-dip galvanized or Powder coated to resist corrosion and match the fence fabric color.
- Designed to wrap around posts and fasten with a carriage bolt and nut, they’re quick to install and adjust.
REGULAR — HPS-BBR Item Sizes
| ITEM CODE | ITEM SIZE |
|---|---|
| HPS-BBR138 | 1 3/8" |
| HPS-BBR158 | 1 5/8" |
| HPS-BBR2 | 2" |
| HPS-BBR212 | 2 1/2" |
| HPS-BBR3 | 3" |
| HPS-BBR312 | 3-1/2" |
| HPS-BBR4 | 4" |
| HPS-BBR412 | 4-1/2" |
| HPS-BBR658 | 6-5/8" |
| HPS-BBR858 | 8-5/8" |
BEVELED — HPS-BBB Item Sizes
| ITEM CODE | ITEM SIZE |
|---|---|
| HPS-BBB138 | 1 3/8" |
| HPS-BBB158 | 1 5/8" |
| HPS-BBB2 | 2" |
| HPS-BBB212 | 2 1/2" |
| HPS-BBB3 | 3" |
| HPS-BBB312 | 3 1/2" |
| HPS-BBB4 | 4" |
| HPS-BBB658 | 6 5/8" |
| HPS-BBB858 | 8 5/8" |
HEAVY — HPS-BBH Item Sizes
| ITEM CODE | ITEM SIZE |
|---|---|
| HPS-BBH158 | 1 5/8" |
| HPS-BBH2 | 2" |
| HPS-BBH212 | 2 1/2" |
| HPS-BBH3 | 3" |
| HPS-BBH312 | 3 1/2" |
| HPS-BBH4 | 4" |
| HPS-BBH412 | 4 1/2" |
| HPS-BBH658 | 6 5/8" |
| HPS-BBH858 | 8 5/8" |
SQUARE — HPS-BBSQ Item Sizes
| ITEM CODE | ITEM SIZE |
|---|---|
| HPS-BBSQ112 | 1 1/2" |
| HPS-BBSQ22 | 2" |
| HPS-BBSQ212 | 2 1/2" |
| HPS-BBSQ33 | 3" |
| HPS-BBSQ44 | 4" |
| HPS-BBSQ66 | 6" |
| HPS-BBSQ8 | 8" |
2 WAY BRACE BAND / DOUBLE CLAMP — HPS-DCR
| ITEM CODE | ITEM SIZE |
|---|---|
| HPS-DCR2 | 1-7/8 180 DEG 2 WAY |
| HPS-DCR212 | 2 3/8 180 DEG 2 WAY |
