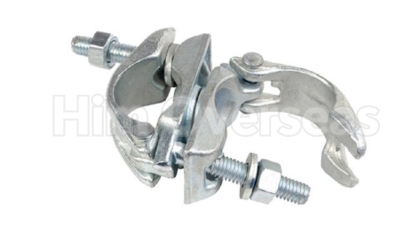

Scaffolding Drop Forged Swivel Coupler

Scaffolding Drop Forged Swivel Coupler is an all-angle fitting for two 48.3 mm OD Scaffold Tubes and in a combination of 48.3mm & 60mm OD tubes as well. The Scaffolding Drop Forged Swivel Coupler is also available with us in Pressed Steel and customized specifications. We are counted amidst the major Manufacturers, Exporters, and Suppliers of Scaffolding Drop Forged Swivel Coupler from India. This is available as Regular model and German Type coupler with options for two types of Bolts - Regular MS (Grade 5.6) and Boron Bolt (Gr 8.8) in Hot dip galvanized finish. The weight ranges from 1.1 to 1.27 kgs.

Specifications

Material S235
Use Forged couplers are used to connect & clamp two pipes perpendicular to each other in a scaffold
Weight 1.030 kg
Color Silver
Size 48.3 mm,60.3 mm
Finish EZP
