Ledgers
Ledgers

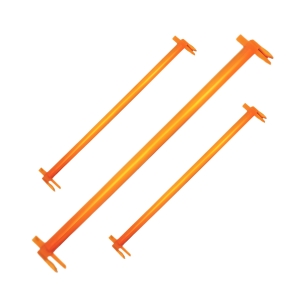

Ledgers are horizontal steel tubes manufactured from high-strength, low-alloy structural steel. They feature forged steel blades welded at both ends, which are designed to fit precisely into the fixed bottom cups of vertical standards. Once positioned, they are secured by the standard’s sliding top cup, creating a rigid node point without the need for loose nuts, bolts, or wedges.
Key Features & Components
- Blade-Locking Mechanism: The unique forged blade ends allow for up to four ledgers to be connected to a single node point on a standard simultaneously.
- Simplified Assembly: Connections are finalized with a single hammer blow to the top cup, significantly increasing labor productivity compared to traditional systems.
- Structural Support: Ledgers provide essential horizontal support for vertical loads and scaffolding boards/planks.
- Multi-Functional Use: Beyond structural support, they can be utilized as mid-rails, top-rails, or hand guard rails for safety.
- Corrosion Resistance: Typically finished with hot-dip galvanization or high-quality paint to ensure a long service life and resistance to rust in harsh environments.
Ledgers (Horizontal) Steel tubes 48.3x3.0mm
| Size (Meter) | Length | Weight |
|---|---|---|
| 0.6 M | 2' | 2.39 kg |
| 1.0 M | 3'3" | 3.80 kg |
| 1.5 M | 4'11" | 5.55 kg |
| 2.0 M | 6'6" | 7.34 kg |
| 2.5 M | 8'2" | 9.06 kg |
