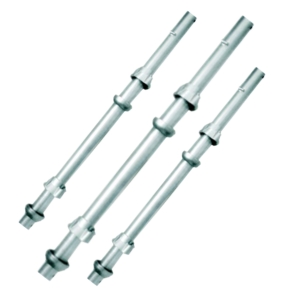

Vertical/ Standard
Vertical/ Standard
In a Cup lock scaffolding system, the Vertical/ Standard (also known as the "Standard" or "Upright") serves as the primary load-bearing member. It is a vertical steel tube that forms the backbone of the scaffold, transferring the weight of the structure, materials, and personnel down to the base.
Key Features & Components
- The Cup-Node System: Standards feature fixed bottom cups welded at standardized intervals (typically 500mm) and sliding top cups. This mechanism allows for the secure locking of up to four horizontal ledgers at a single point with a simple hammer blow.
- Integral Spigots: Each standard is equipped with an internal spigot (typically 150mm long) at the top to allow for secure vertical connection to the next standard.
- Locking Pin Holes: Both the spigot and the base of the standard contain pre-drilled holes to enable the use of Locking Pins/G Pin/Prop Pin, which are necessary to resist tensile forces between members.
Standard(Vertical) Steel tubes 48.3x3.2mm
| Size (Meter) | Length | Weight |
|---|---|---|
| 0.5 M | 1'8" | 3.42 kg |
| 1.0 M | 3'3" | 6.12 kg |
| 1.5 M | 4'11" | 8.77 kg |
| 2.0 M | 6'6" | 11.46 kg |
| 2.5 M | 8'2" | 14.13 kg |
| 3.0 M | 9'10" | 16.82 kg |
